Schonstedt XT-512 Camera and Sonde Locator + GA-92XTd Magnetic Locator + Padded Carrying Case

SKU: PK-500
Regular price


Ready to ship
USA shipment only

    Buy With Confidence:

  • Free shipping over $99
  • 14-Day Returns
  • Live Inventory In Stock: (1980)
  • Ready to ship
  • Usually Ships Out In 1-3 Days

Schonstedt XT-512 Camera and Sonde Locator + GA-92XTd Magnetic Locator + Padded Carrying Case



Product Videos

Guides and Documents

Questions Answered

PK-500: Plumber’s Kit - Optimized for Professional Plumbers

With the PK-500 Kit, professional plumbers have the two tools essential to finding it underground: a XT-512 sonde/camera locator and a GA-92XTd magnetic locator. The XT-512 combines the portability of an expanding/retracting locator with the 512 Hz sonde and passive locating capability found in larger, more cumbersome locators. With the XT-512, you can locate and determine the depth of a sewer/pipe inspection camera or an independent obstructions and blockages. The GA-92XTd magnetic locator is a pistol-grip locator that retracts for carrying in a holster.

Be sure to read our comparison article entitled Schonstedt XT-512 Camera and Sonde Locator + Padded Carrying Case versus Schonstedt XT-512 Camera and Sonde Locator + GA-92XTd Magnetic Locator + Padded Carrying Case

PK-500: Plumber’s Kit Applications:

  • Camera & Sonde Locating
  • Water & Sewer Line Blockages & Obstructions
  • Plastic Pipe W/ Tracer Wire
  • Well Casings
  • Irrigation Lines
  • Manhole Covers
  • Septic Tanks
  • Steel Pipes

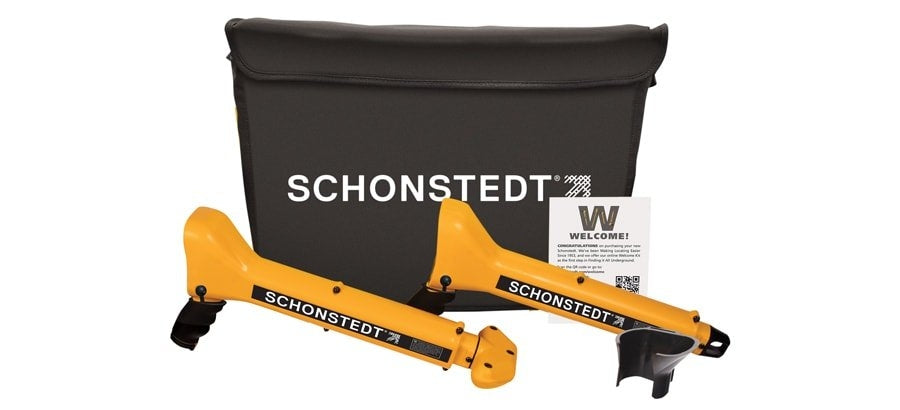

The PK-500 Kit includes:

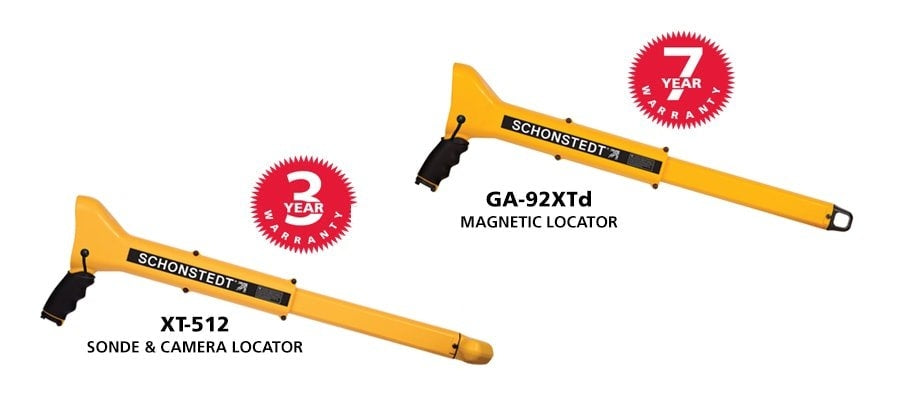

  • GA-92XTd Magnetic Locator
  • XT-512 Sonde and Camera Locator
  • Holster
  • Hard Carrying Case

XT-512 Receiver Specifications, Standard Equipment, Accessories

  • BATTERY One 9V battery
  • BATTER LIFE 12 hours (intermittent use)
  • AUDIO OUTPUT 10 - 1400 Hz determined by signal strength
  • 0 - 70 db SPL (Sound Pressure Level), volume-controlled
  • WEIGHT Under 2.8 lbs
  • OPERATING TEMP -4°F to 140°F (-20°C to 70°C)
  • OVERALL DIMENSIONS Closed: 17.5" x 3" x 8.5" (44 cm x 7.6 cm x 21.5 cm)
  • Extended: 27.7" x 3" x 8.5" (70 cm x 7.6 cm x 21.5 cm)
  • SENSORS Split angled sensors to derive peak and null signals

GA-92XTd Receiver Specifications

  • GAIN 4-Level LCD - Low (L), Medium (M), High (H), Extra High (XH)
  • VOLUME 3 Levels: Muted, Medium and Maximum
  • INPUT POWER One 9V Battery
  • BATTERY LIFE 24 Hours (intermittent use)
  • OPERATING TEMP -13° F to 140° F (-25° C to 60° C)
  • OVERALL LENGTH Open – 26” (66 cm)
  • Closed – 15.5” (39 cm)
  • WEIGHT Approximately 2.4 lb (1.1 kg)

PCS-800 Optional Accessories:

  • Inductive Antenna (p/n: PC20010)
  • Standard Headset (p/n: XT40000)
  • 3″ Inductive Signal Clamp (p/n: PC60000)
  • 5″ Inductive Signal Clamp (p/n: PC60001)
  • 7″ Inductive Signal Clamp (p/n: PC60002)
  • Large Heavy Duty – p/n: TM70001-1 (black) &/or TM70001-2 (red)
  • Small Heavy Duty – p/n: TM70002-1 (black) &/or TM70002-2 (red)
  • Carry-All Bag (p/n: PC40000)
  • Belt Accessory Pouch & Nylon Belt (p/n: PC30000)

PCS-800 Optional Sondes:

  • 512 Hz Sonde (p/n: TM50910)
  • 512 Hz Micro Mini Sonde (p/n: TM50911)
