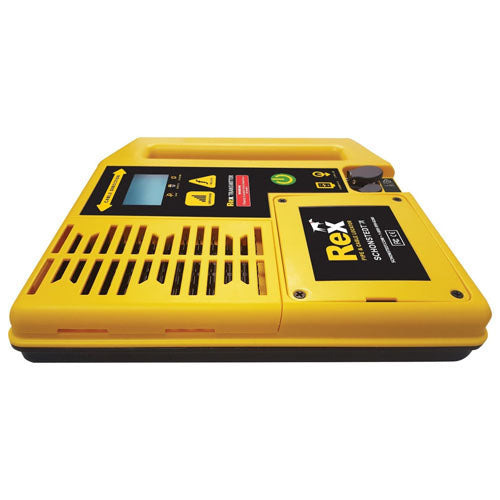

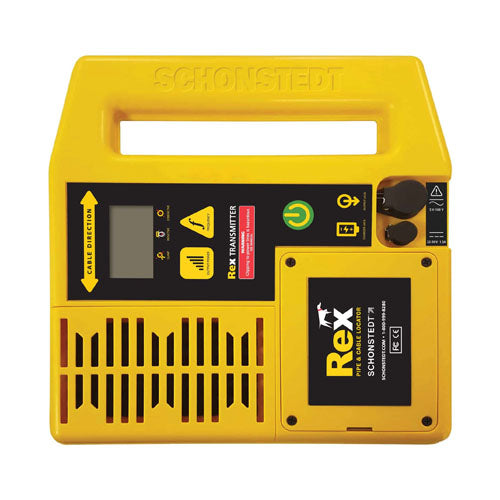

Schonstedt Multi-Frequency Pipe & Cable Locator - Transmitter Only

Model Number: REX-T

Features:

• Ultralight Design
• Comes equipped with rechargeable batteries

• Operating Frequency: 512 Hz, 33 kHz and 82 kHz
• Operating Modes: Conductive, Inductive, and Inductive Clamp
• Max Output Power (Conductive mode @ 1000 Ω load): 512 Hz - 1/2, 1, 2 or 5 W, 33 kHz - 1/2, 1, 2 or 5 W, 82 kHz - 1/2 or 1
• Battery Type: Rechargeable NiMH pack (12V)
• Battery Life: 8 Hours (intermittent usage @ 70° F)
• Charging: Internal Smart Charger powered by AC/DC power adapter
• Dimensions: 10”W x 10.25”D x 1.75” H (25.4 cm x 26 cm x 4.5 cm)
• Weight: 3.5 lbs (1.6 kg)
• Operating Temperature: -4°F to 140°F (-20°C to 70°C)
• Backlighting: White LED array
• Water and Dust Resistance: Rated IP54
