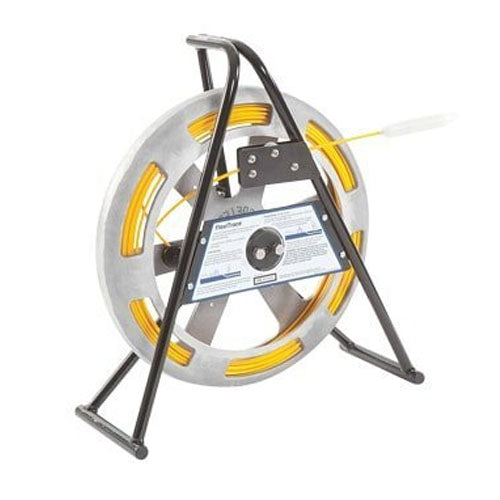

Schonstedt FlexiTrace 164'

Schonstedt 164' FlexiTrace

Features:

• Compatible with a range of Schonstedt pipe & cable locators, FlexiTrace is a flexible, conductive rod with a sonde at the end.

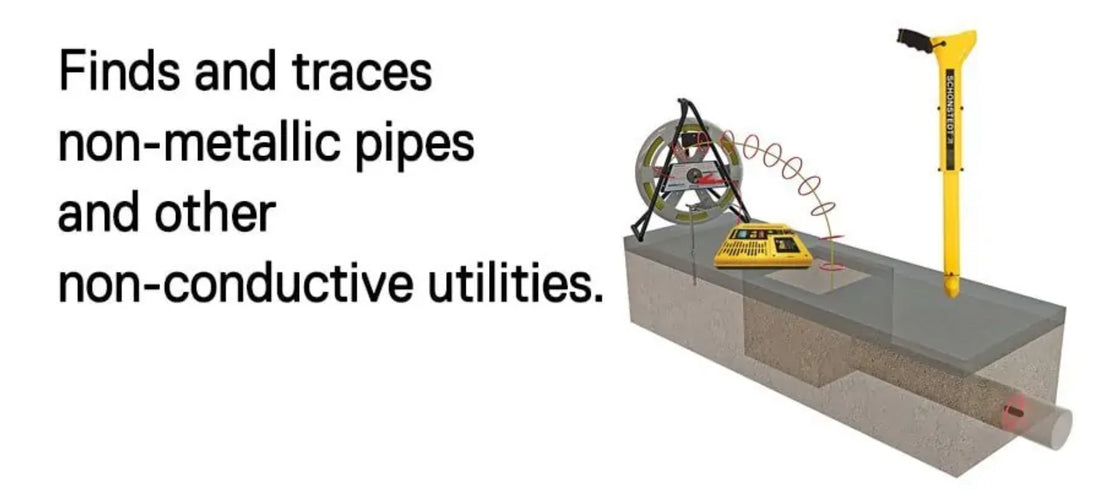

• When one transmitter lead is connected to FlexiTrace, the conductive rod can be used to trace non-metallic pipes.
• When both leads are connected, the end behaves like a sonde to help locate blockages.
• Works with the REX, Loki, and 5100 H2O+
• Please Note: A transmitter must be used with a locator for the FlexiTrace to work

• Rod diameter of 0.2” (5mm)
• Length of up to 164’ (80m)
• Pinpoints the location of a blockage
• Traces the route of non-metallic pipes or conduits
• Weight: 11 lbs (6 kg)
• Min Bend Radius: 10” (250 mm)
• Rod Connection: Built in sonde
• Frame Length: 33" (850 mm)
• Frame Width: 21" (520 mm)
• Frame Height: 37" (940 mm)
