A Powerful Water and Cavefinder. 2 Year Limited Warranty Included.

• Geoelectric water and void detector: Determines the ground resistance down to a depth of 250 m (820 ft) and visualizes the measured values in 3D
• Detection depth: With this technology customers found water down to 250 m (820 ft) deep
• Use cases: Water detection, cavity detection, geotechnical engineering
• Operating modes: Active/Passive
• Detectable structures: Water deposits, water-bearing gravel, cavities

The OKM GeoSeeker Water and Cavefinder is most accurate and deepest detection Ground penetration locator OKM has ever offered. The GeoSeeker in Active Scan modes can output a large scan voltage of up to 390 Volts. The active scan mode is the most accurate scan method and will give the best results in the location of water and caves or caverns.

The Geoseeker can also operate in a passive scan mode without direct power input that will only measure the natural occurring voltage that is in the ground itself. This type of scan is suitable in sloping areas with an underground watercourse. The GeoSeeker can easily make accurate 3D Graphic scans of underground resistivity at a maximum depth of up to 820 feet or 250 meters. Easy to follow step-by-step guided measurements and wireless data transfer to the Tablet PC make using this highly sophisticated Geo-electrical detector one of the deepest and easiest to use!

A New Powerful Water & Cavefinder!

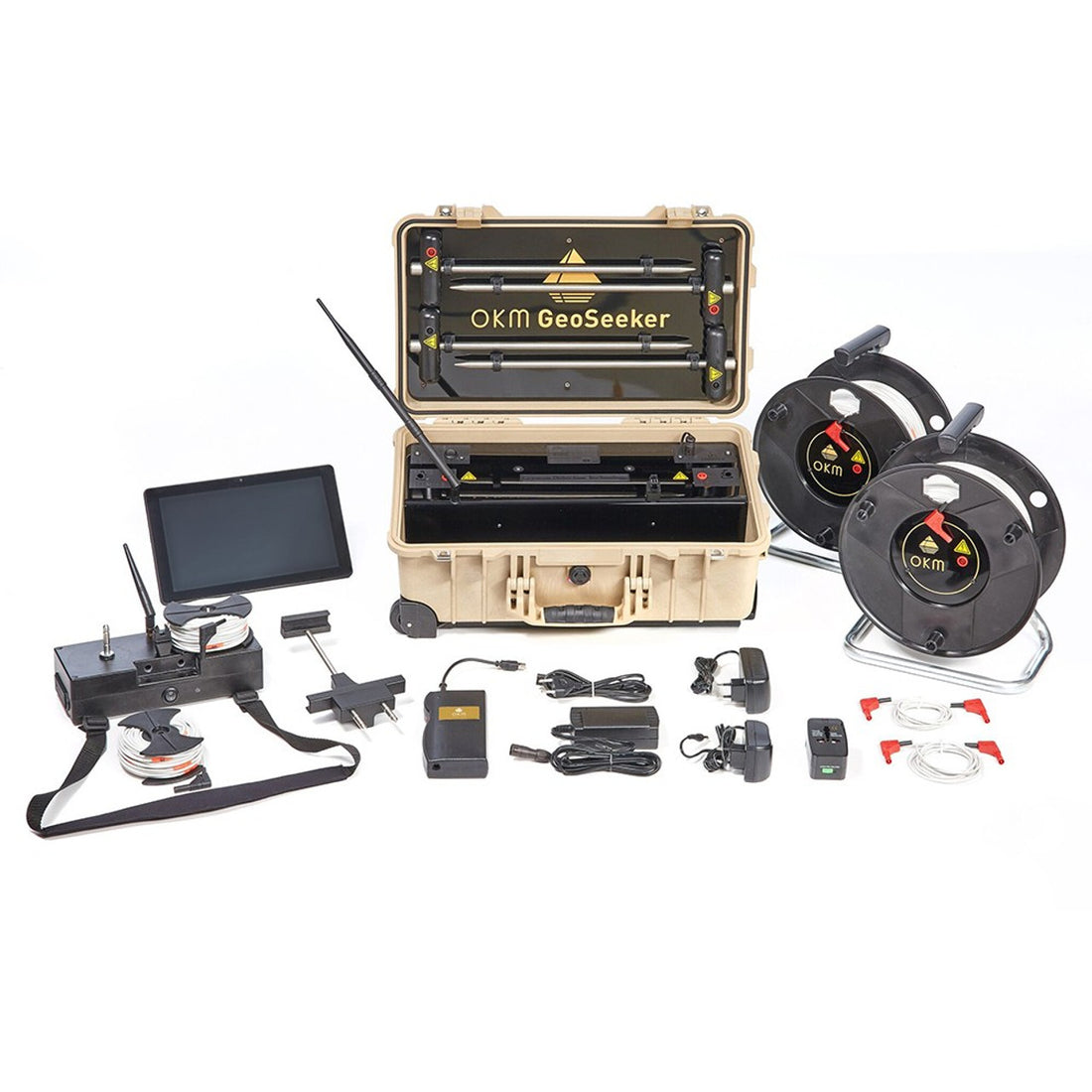

Technical Specifications:

• 2 Year Warranty
• Controller (Receiving Unit)
• ADC : 16 Bit
• Weight : 1.3 lbs (0.6 kgs)
• CPU : 80 MHz Cortex M3
• Input (Charger) : 12 VDC, 1.5 A
• Power Supply (8 AA batteries) : 8-14 VDC*
• Effective Range (differential) : -700 to +700 mV
• Operating Time (charged batteries) : Min. 16 Hours
• Measurement Period per Scan Point : Min. 16 Seconds
• Dimensions (H x W x D) : 5" x 10" x 4" (130 x 270 x 110 mm)
• Charging Time (empty batteries) : Typically 3 Hours, Max. 5 Hours
• Weight (with mounted cable drums and batteries) : 4.6 lbs (2.1 kgs)
• Communication with Power Box : 2.4 GHz Band, On-Demand, Proprietary
• Communication with Tablet PC : WLAN-Accesspoint, 2.4 GHz Band, Channel 6, WPA2
• Data Sampling Rate : 4096 Hz (64 times oversampling of a 512 samples mean value)
• Power Box (Sending Unit)
• Weight : 34.8 lbs (15.8 kgs)
• Input (Charger) : 24 VDC, 2 A
• Charging Time : Max. 8 Hours
• Output : Max. 390 V, 0.5 A, 20 W
• Operating Time (max. power) : Approx. 8 Hours
• Operating Time (min. power) : Approx. 100 Hours
• Operating Time (average power) : Approx. 40 Hours
• Weight (with mounted electrodes) : 39.6 lbs (18 kgs)
• Internal Power Supply : Lead Acid Battery (2 x 12 V, 10Ah)
• Dimensions (H x W x D) : 9" x 21" x 14" (230 x 550 x 360 mm)
• Communication with Controller : 2.4 GHz Band, On-Demand, Proprietary
• Electrodes
• Weight : 1.14 lbs (0.52 kgs)
• Dimensions (L x W x D) : 17" x 4" x 1" (440 x 120 x 35 mm)
• Power Drum (O 290 mm)
• Markers : 15
• Weight : 14.3 lbs (6.5 kgs)
• Cable Length : 836' (255 m)
• Dimensions (H x W x D) : 14" x 11" x 7" (360 x 290 x 200 mm)
• Voltage Drum (O 100 mm)
• Markers : 25
• Cable Length : 85' (26 m)
• Weight : 1.43 lbs (0.65 kgs)
• Dimensions (H x W x D) : 4" x 4" x 1" (120 x 120 x 45 mm)
• Tablet PC, Minimum Requirements
• Wi-Fi / WLAN : Required
• USB Chargeable : Micro-USB-B
• Operating System : Android 4.0.3 or Higher
• Display : 10" Tablet Screen, Outdoor Brightness

Features:

• Mobile Geo-Electrical Detector
• Wireless Data Transfer to Tablet PC
• 3D Graphics of Underground Resistance
• Easy Step-by-Step Guided Measurements
