OKM Fusion Professional with Tablet PC

The Professional Version is perfect for starters or small budgets. Lightweight 3D Metal Detector & 3D Ground Scanner without telescopic rod assembly and less functionality than Professional Plus.

Overview

The OKM Fusion has been designed for starters in the field of 3D measurements and offers easy operation as well as advanced scanning features. The 3D ground scanner OKM Fusion supports treasure hunters, gold seekers, adventurers, and archaeologists to discover lost treasures, buried artifacts, hidden places, and other historical items.

Operating Modes

The professional version is solely used in vertical orientation and supports the following operating modes:

• Ground Scan: Conduct a graphical 3D measurement for detailed analysis on a computer.
• Live Sound: Process an acoustical magnetic field measurement to detect ferrous metals.

SRIS Search Coil

One of the new detection features is the SRIS search coil that can be used to locate short-range metallic objects. This coil can be activated individually while setting up the operating modes Live Sound and Ground Scan. It is very useful to pinpoint targets while digging.

By checking the excavated material with the activated SRIS search coil, you won't miss any small object like:

• wedding bands and engagement rings
• earrings, brooches, bracelets, and necklaces
• coins, buttons, badges, and pins

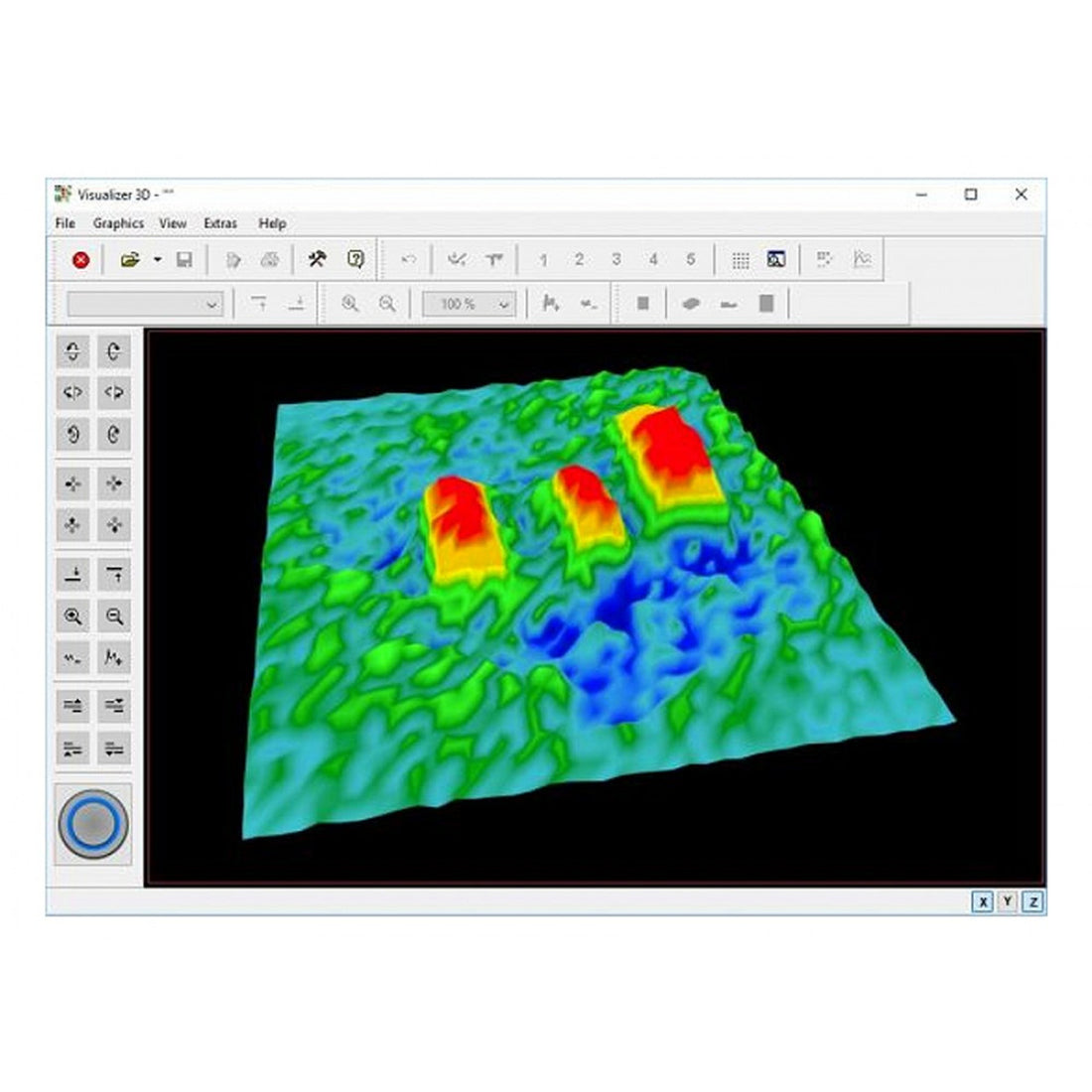

Visualizer 3D Software

While scanning an unknown area and recording measurement values, the Visualizer 3D software can immediately analyze and visualize the data to display a color-coded 3D graphic of hidden objects and structures. You’ll be able to “see” buried treasures, gold, artifacts, and more before digging — and also determine the size, position, and depth of each target.

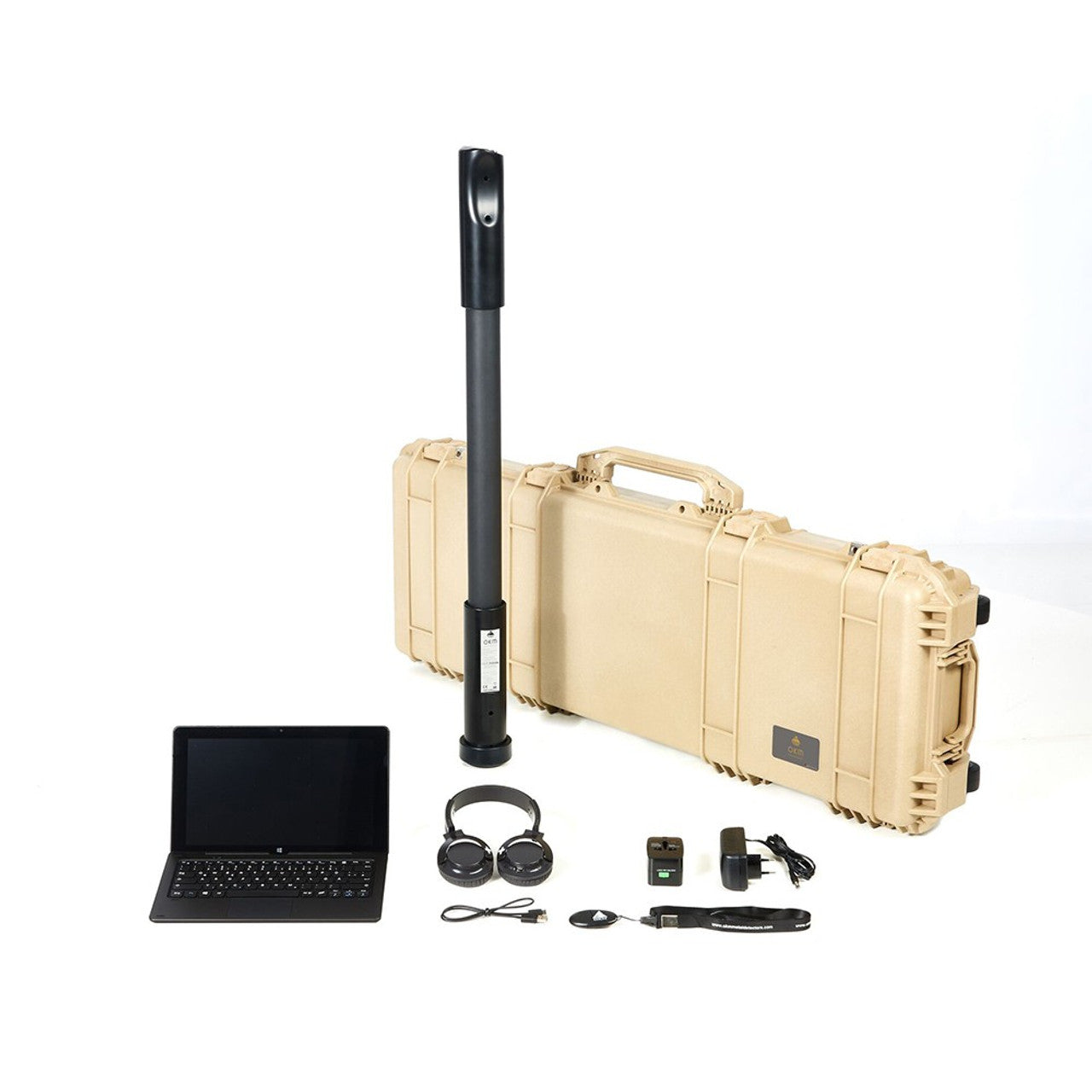

Features

• Bluetooth headphones
• Wireless data transfer
• Preconfigured Tablet-PC
• Data visualization with Visualizer 3D software
• New SRIS search coil for small shallow metal targets
• Waterproof and shock-resistant Pelican case

Technical Specifications

The following technical indications are median values. Small variations may occur during operation. Specs are subject to change due to ongoing development.

• Control Unit
  • Weight: about 1 kg
  • Protection Class: IP40
  • Dimensions (H x W x D): 950 mm, 65 / 80 mm
  • Operating time (internal battery): approx. 12 hours
  • Charging time (internal battery): approx. 3 hours
  • Input (charger socket): 19 V DC / 3.16 A
  • Processor / Main CPU: Cortex M3, 32 MHz
  • Processor / Slave CPU: Cortex M0, 24 MHz
  • Sensor technology: SCMI-15-D
  • Coil technology: SRIS-18K
  • Sample rate: 1024 values / second
  • Measurement resolution: 16 bit
  • Operating temperature: -10 to 60 °C
  • Storage temperature: -20 to 70 °C
  • Audio: Bluetooth headphones
  • Air humidity: 5% - 75%
  • Waterproof: No
• Wireless Data Transfer
  • Technology: Bluetooth
  • Maximum transfer rate: 1 Mbps
  • Receiving sensitivity: -85 dBm
  • Maximum range: about 10 m
  • Frequency range: 2.4 - 2.4835 GHz
• Computer, Minimum Requirements
  • CD-ROM drive (internal or external): min. 4x
  • Interface (data transmission): USB
  • Free disk space: min. 50 MB
  • Working memory (RAM): min. 256 MB
  • Graphic card: min. 128 MB, OpenGL-compatible
  • Operating system: Windows Vista, Windows 7, Windows 8, Windows 10
