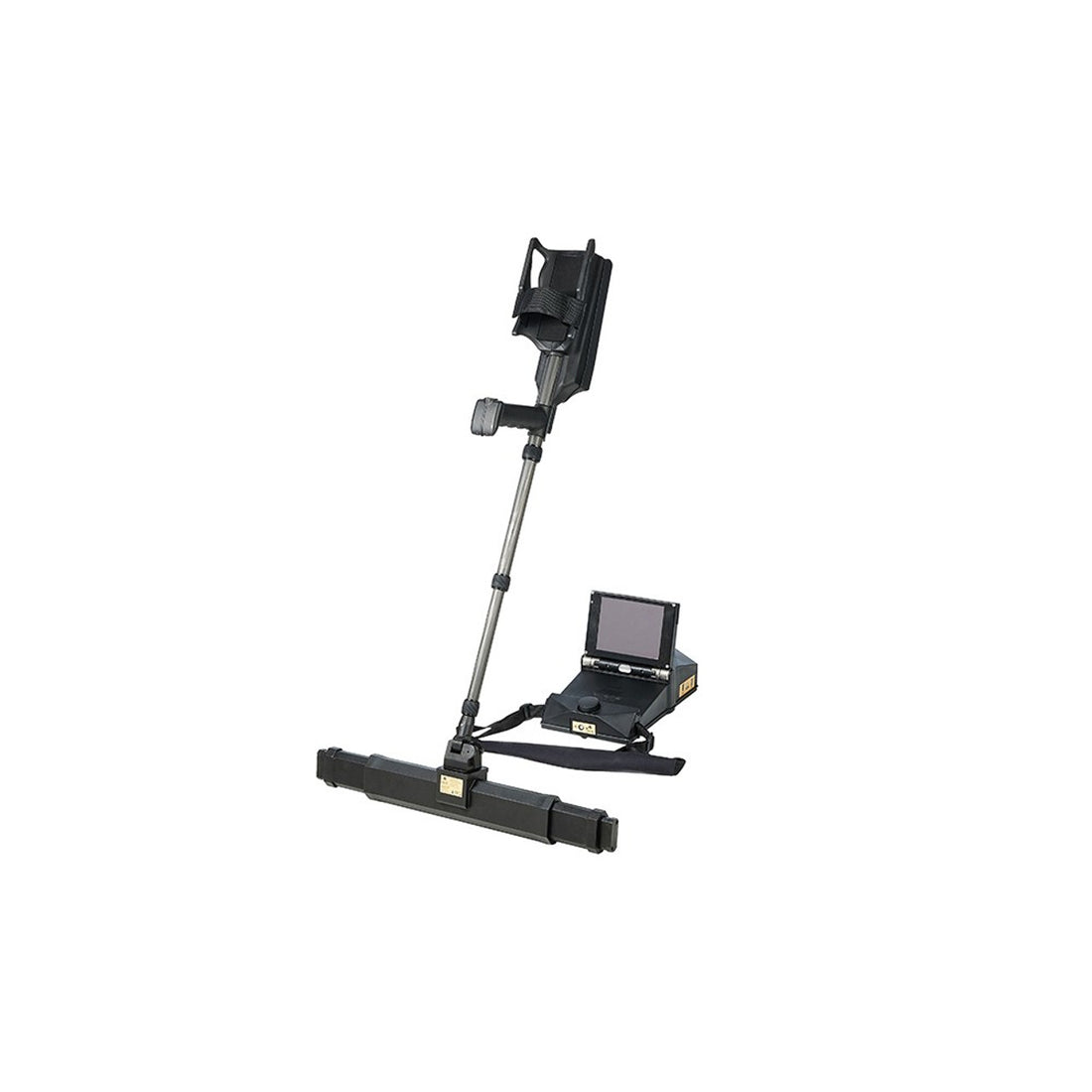

OKM eXp 6000 Professional PLUS Metal Detector

OKM eXp 6000 Professional Plus Metal Detector

Product Overview

The OKM eXp 6000 Professional Plus is a cutting-edge wireless 3D metal detector and ground scanner featuring touch screen control and Android video eye glasses compatibility. This advanced geophysical detection instrument locates buried artifacts, lost treasures, subsurface anomalies, underground utilities, and other hidden structures using nondestructive examination methods.

Key Highlights

• Wireless Technology: Cable-free operation using WiFi technology with all probes transmitting data wirelessly
• Multiple Sensors: Telescopic Probe, Super Sensor, LiveStream Sensor, and Tunnel Sensor
• Six Operation Modes: Ground Scan, Tunnel Scan, Magnetometer, Mineral Scan, Pin Pointer, and Live Scan
• Multilingual Interface: GUI translated into more than 12 languages
• Weight: 2.98 lbs (1.35 kg)
• Warranty: 2 years limited

Applications

• Prospecting natural gold minerals
• Pinpointing valuable artifacts and treasure finds
• Ground surveying battlefields, historic settlements, and ancient sanctuaries
• Treasure hunting for buried items made of gold, silver, copper, and bronze
• Detection of underground non-metal anomalies (walls, foundations, statues, tombs, caves, chambers)

Measuring Probes

Each measuring probe includes an orientation sensor (gyroscope) for high-quality scan images and provides visual and acoustic feedback for probe inclination correction.

Telescopic Probe

Features

• Extends from 50 cm to 120 cm scanning width
• Reduces the number of scanning probes needed
• Single horizontal GPR probe design

Specifications

• Length: 19" - 47" (50 - 120 cm)
• Weight: About 2.2 lbs (1 kg)
• Sensor Technology: TCFX-01-A
• Receiver: Dual Geophysical Phase Reader - EMSR

Super Sensor

Features

• Most versatile ground scanning probe
• Supports Pin Pointer mode with metal discrimination
• Enables Mineral Scan for natural gold detection

Specifications

• Length: 39" (100 cm)
• Weight: About 1.7 lbs (770 g)
• Sensor Technology: TCFX-01-A
• Receiver: Dual / Hi-Gain - Vertical - Geophysical Phase Reader - EMSR

LiveStream Sensor

Features

• Provides direct underground view
• Streams measuring data to display or video glasses
• Real-time underground object location

Specifications

• Length: 19" (50 cm)
• Weight: About 1.8 lbs (820 g)
• Sensor Technology: TCFX-01-A
• Receiver: Quad Geophysical Phase Reader - EMSR

Tunnel Sensor

Features

• Designed for locating underground hollow spaces
• Detects tunnels, caves, sepulchers, dugouts, bunkers, shelters, tombs
• Identifies non-metallic subsurface changes

Specifications

• Length: 19" (50 cm)
• Weight: About 1.15 lbs (520 g)
• Sensor Technology: TCFX-01-A
• Receiver: Dual Geophysical Phase Reader - EMSR

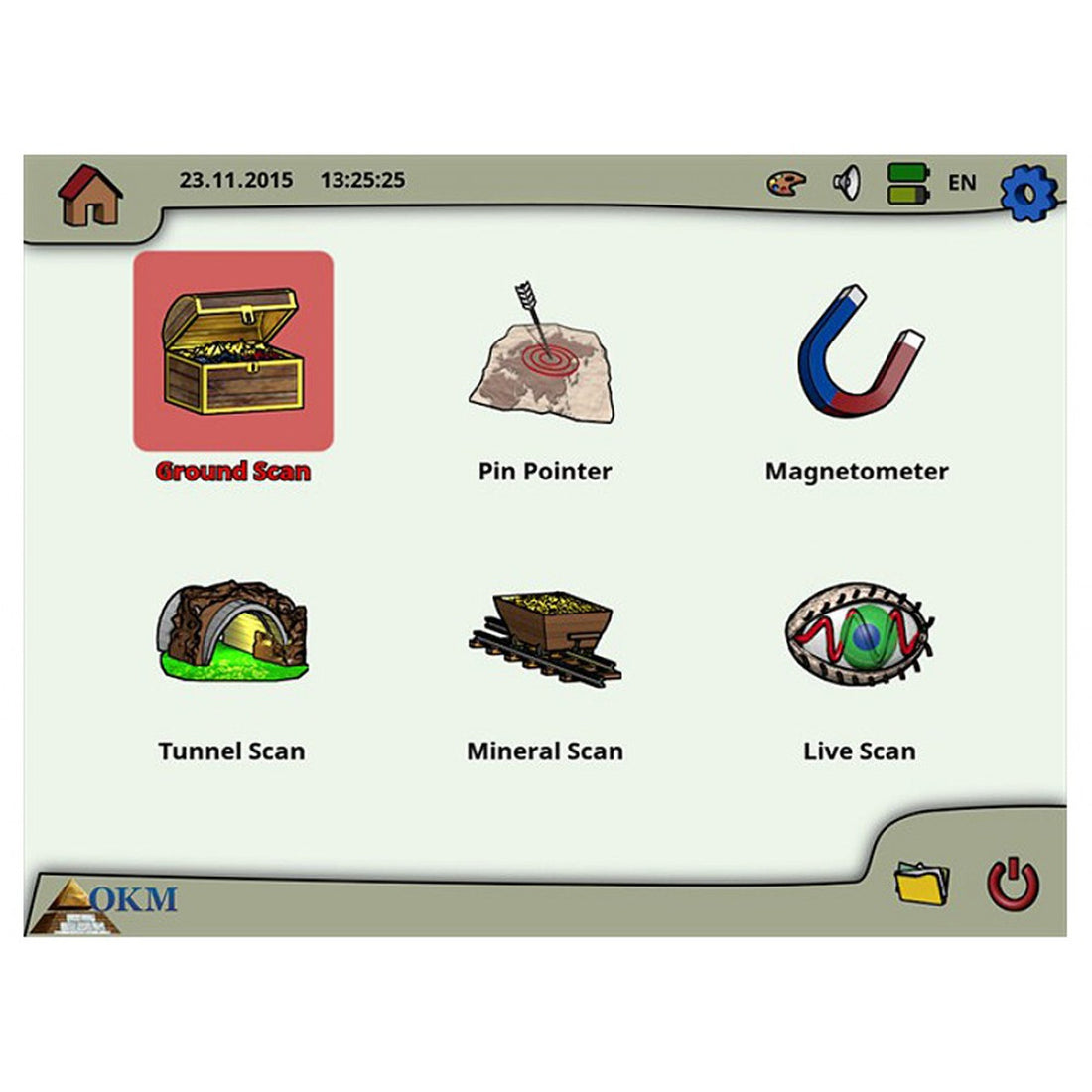

Operating Modes

Ground Scan

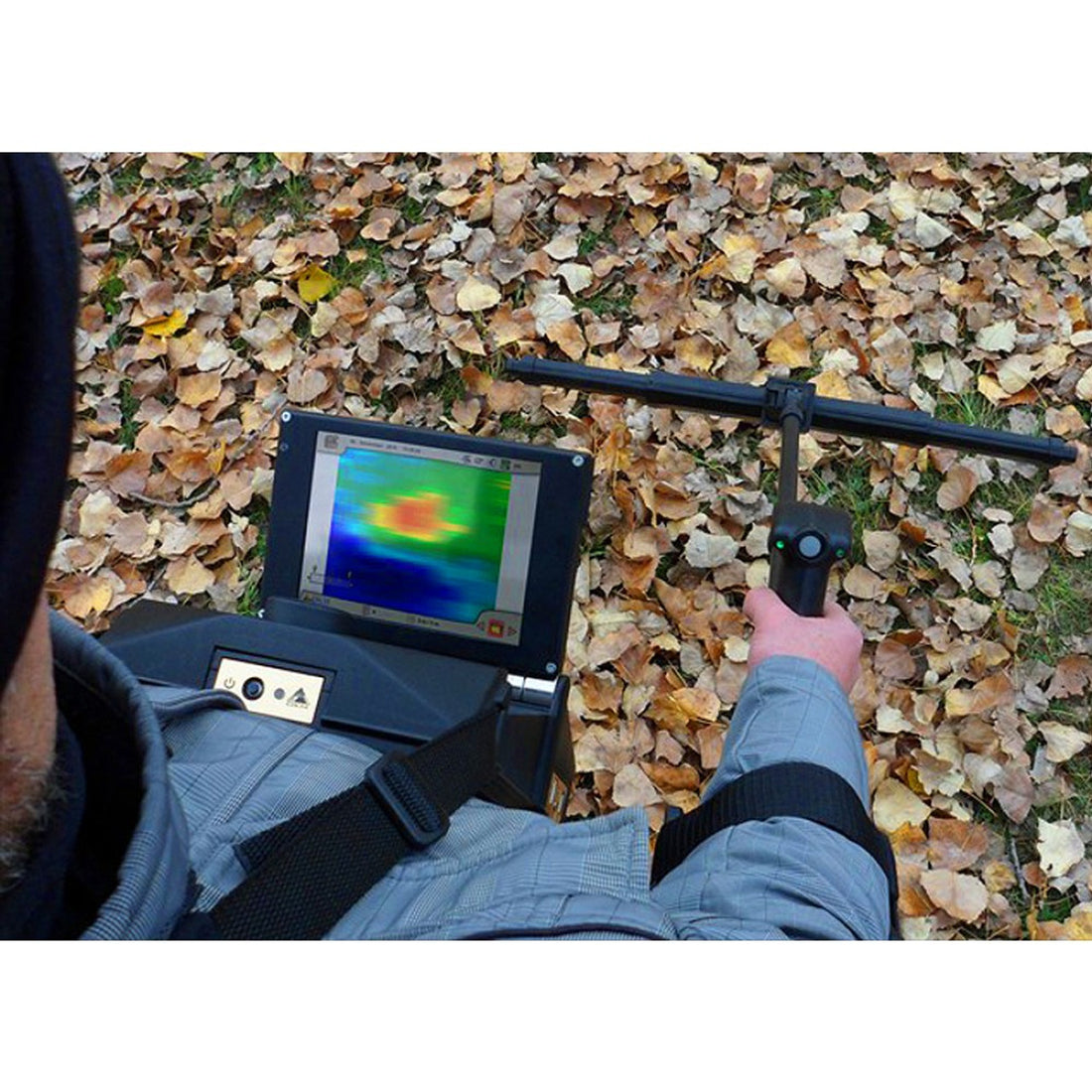

Primary function for creating full ground scans of target areas. Compatible with all measuring probes. Scan images can be stored and transferred via USB for analysis with Visualizer 3D software.

Tunnel Scan

Specialized for detecting voids, caves, chambers, tombs, and tunnels. Used exclusively with the Tunnel Sensor to highlight non-metallic objects and anomalies.

Magnetometer

Detects ferrous metals including iron, iron oxide, stainless steel, and iron alloys. Provides audio-visual indication and can clean contaminated areas before scanning for precious metals.

Mineral Scan

Designed for prospectors and gold seekers using the Super Sensor to locate underground deposits of natural minerals like gold.

Pin Pointer

Utilizes the Super Sensor to pinpoint exact object locations and provides metal type indication (ferrous vs. non-ferrous).

Live Scan

Works exclusively with the LiveStream Sensor, streaming scan information directly to the screen or video glasses in real-time.

Control and Display Features

Touch Screen Interface

• 6.5" diagonal display
• 1024 x 768 pixel TFT color
• 650 cd/qm brightness
• Multi-function control knob alternative

Wireless Android Integration

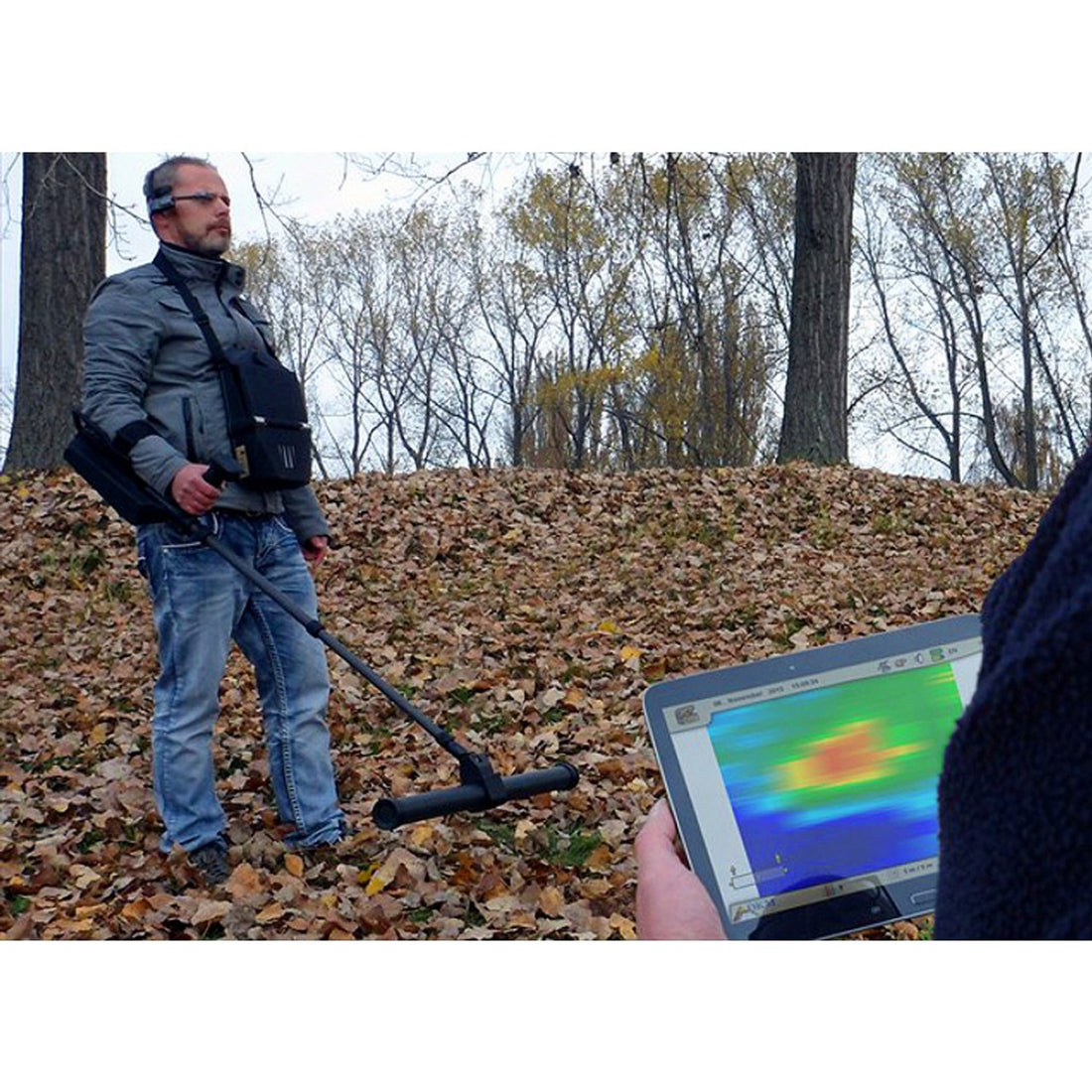

• Compatible with Android tablet PCs
• Android video eye glasses support
• WiFi connectivity for multiple users
• Reduces light emission in bright conditions

Layout Selection

Multiple color schemes and layouts optimize visibility under extreme light conditions including bright sunlight and dark night environments.

Visualizer 3D Software

Core Functions

• Color filtering
• Pre-configured soil types for depth measurement
• Variable render and display options
• GPS location integration with Google Maps
• Position, size, and depth measurement of detected objects

Analysis Features

• Automatic and manual error correction
• Signal correction for probe inclination
• Interpolation filtering for improved scan quality
• Multilingual graphical user interface

System Requirements

• Operating System: Windows Vista, 7, 8, 10
• Processor: Minimum 1.5 GHz
• RAM: Minimum 512 MB
• Graphics: Minimum 256 MB, OpenGL-compatible
• Storage: Minimum 50 MB free space
• Drive: Minimum 4x CD-ROM

Technical Specifications

Control Unit

• Waterproof: No (IP40 safety class)
• Weight: 2.98 lbs (1.35 kg)
• Voltage: 11.8 - 14.8 VDC, 30W maximum
• Operating Temperature: 14 °F - 122 °F (-10 °C - 50 °C)
• Storage Temperature: -4 °F - 140 °F (-20 °C - 60 °C)
• Air Humidity: 5% - 75%
• Operation Distance: Max. 30m (line of sight to probe)
• Operating Time: Approximately 3 hours (fully charged, 77 °F/25 °C)

Technical Components

• Computer: QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU
• Data Memory: 16 GB Industrial SDCard, Class 10
• Working Memory: 4 GB Kingston HyperX RAM
• Data Transmission: WiFi 802.11n a/b/g, MIMO 2x2
• Data Rate: 11 Mbps - 54 Mbps
• Dimensions: 8.6" x 6.3" x 11.6" (220 x 160 x 295 mm)

GPS Receiver Specifications

• Cold Start: 60 seconds
• Warm Start: 1 second
• Input Voltage: 5V DC
• Weight: About 0.13 lbs (60 g)
• Data Transfer Rate: 1 second
• Input Current: 46 mA typical, 350 mA maximum
• Dimensions: 2" x 2" x 0.78" (50 x 50 x 20 mm)

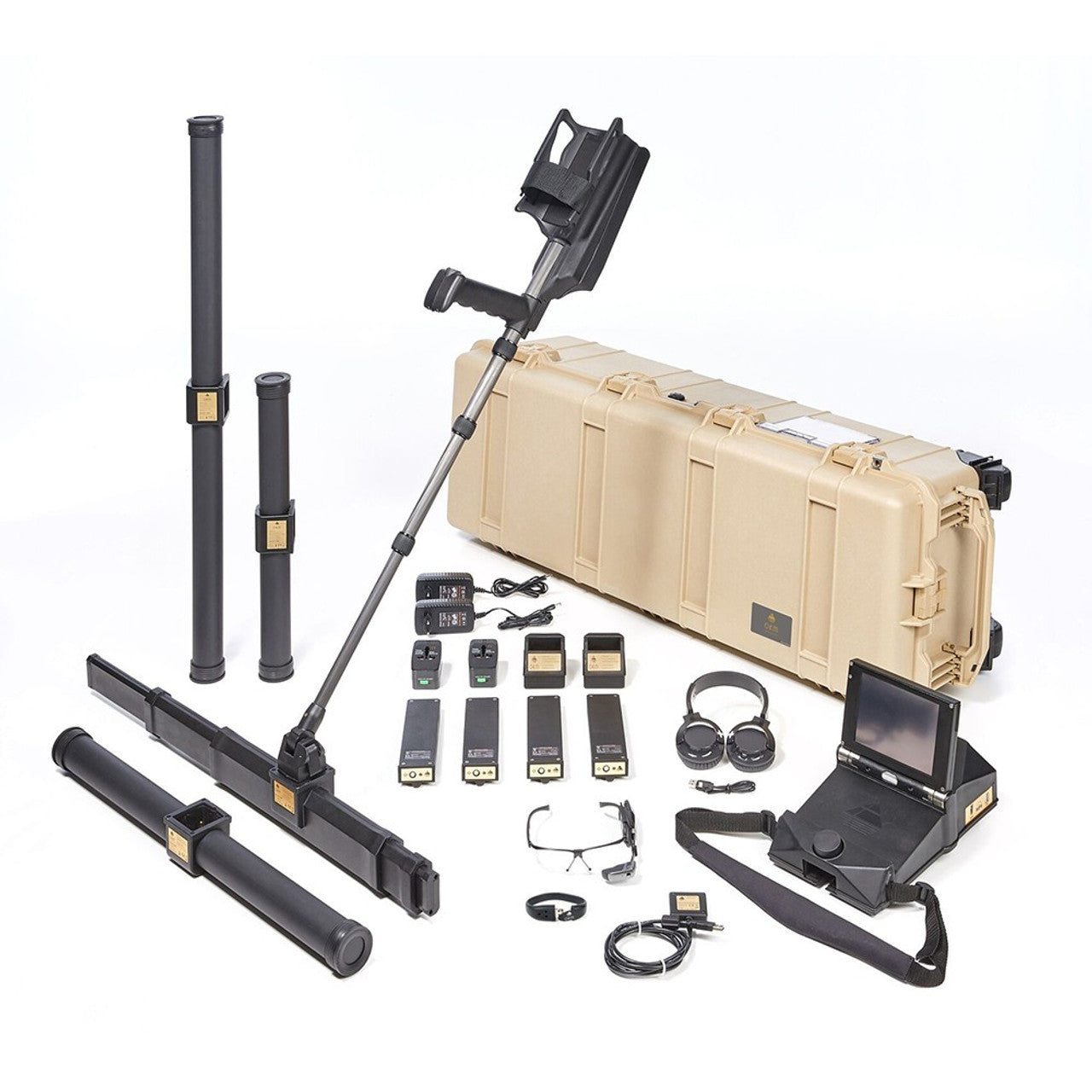

Package Contents

Professional Package (Basic)

• 1x Control Unit
• 1x Telescopic Rod Assembly
• 2x Power Pack
• 2x Charger, Docking Station and Travel Adapter
• 1x Wireless Headphones
• 1x USB Stick
• 1x Visualizer 3D Software
• 1x Waterproof Peli Case
• 1x Telescopic Probe
• 1x Super Sensor

Professional Plus Package (Complete)

All Professional package contents plus:

• 2x Additional Power Packs (4 total)
• 1x External GPS Receiver
• 1x LiveStream Sensor
• 1x Tunnel Sensor

Additional Accessories

• Waterproof and shock-resistant Peli case for protection during travel
• Compatible with standard wired headphones or internal speaker
• USB stick for easy data transfer to Windows computers
