OKM Evolution NTX Metal Detector

$7,490.00

OKM Details

Questions Answered

Product Highlights

  • Technology: 3D Deep Ground Scanner with Advanced Metal Detection Technology, Functionality, Ergonomics and Futuristic Design.

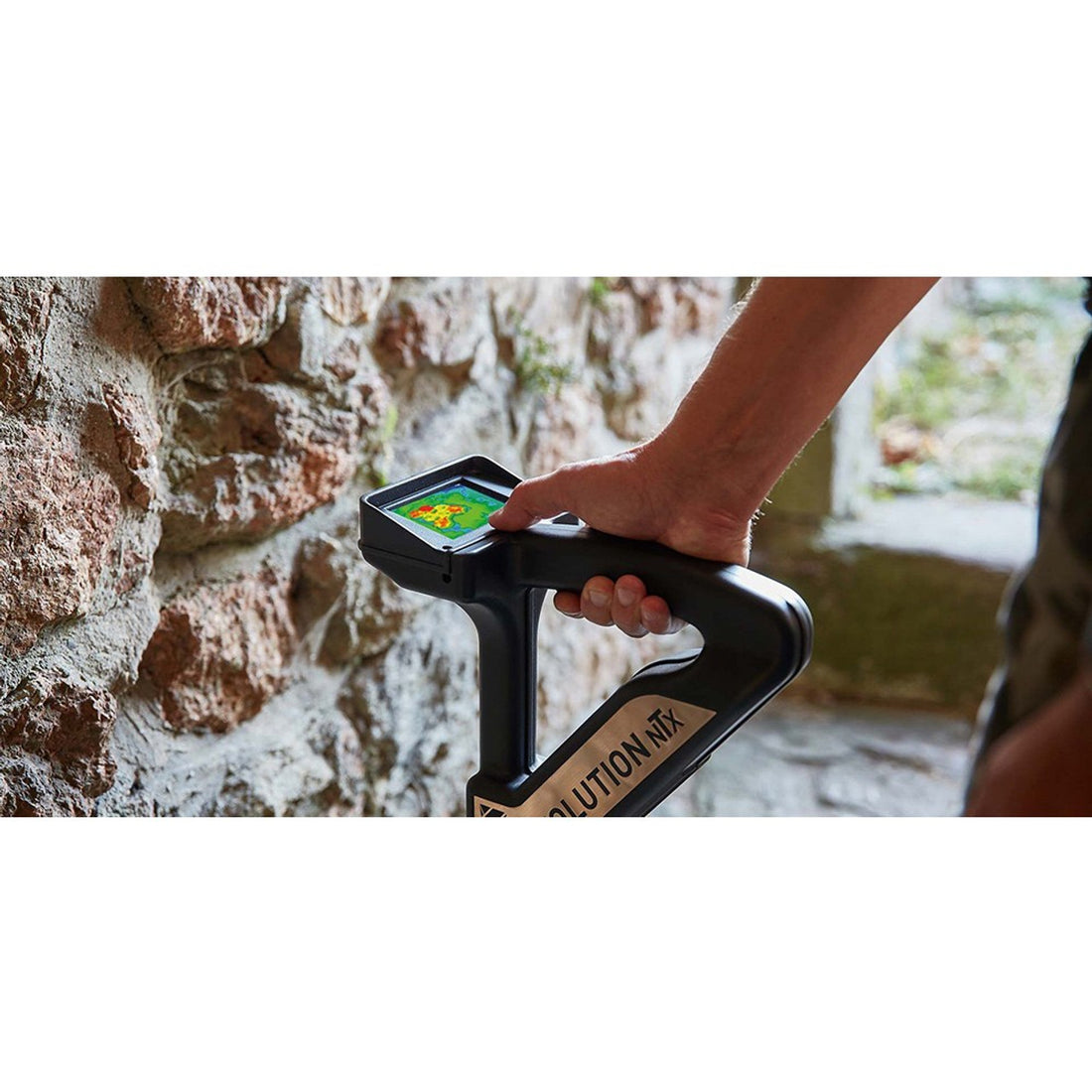

  • Touchscreen: Integrated color touchscreen with higher resolution

Product Description

OKM Evolution NTX Metal Detector Page 2

3D Deep Ground Scanner with Advanced Metal Detection Technology, Functionality, Ergonomics and Futuristic Design.

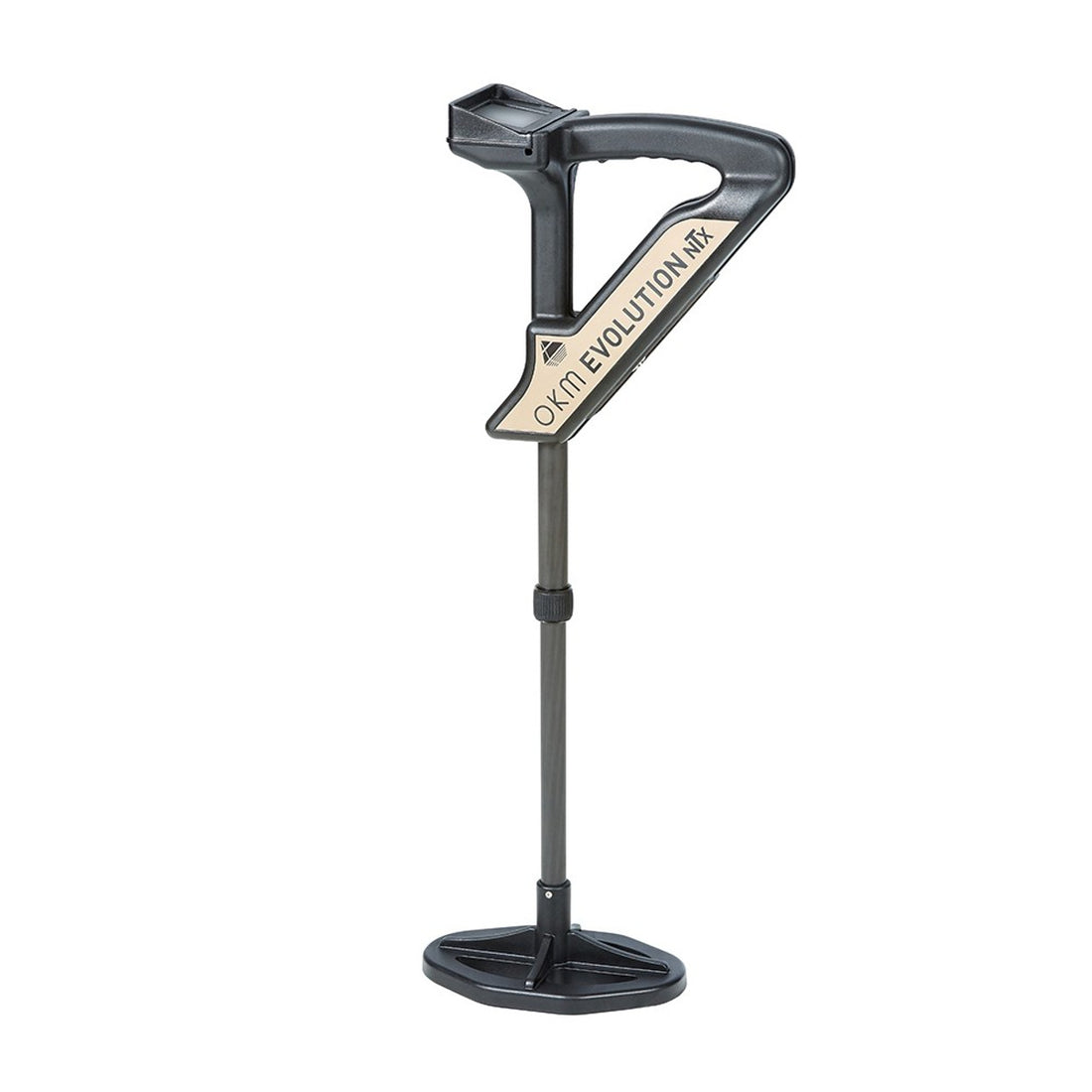

The 3D deep ground scanner, Evolution NTX, takes another step forward in advanced metal detection technology. It is a stunning blend of functionality, ergonomics and futuristic design.

The 3d ground scanner OKM Evolution NTX supports two operating modes to research the underground soils for hidden objects and structures. The length of the detector can be adjusted individually according to your own body height. Thus you can make this metal detector your metal detector.

The metal detector and 3d ground scanner OKM Evolution NTX can be used by treasure hunters, gold seekers, metal detectorists and archaeologists who are looking for buried objects, hidden artifacts or other lost items like Lost valuables (rings, coins, jewelries, wedding bands), Buried treasures and artifacts, as well as Ancient boxes, chests, chambers and sepulchers.

Unlike other metal detectors the OKM Evolution NTX can process graphical 3d images of underground treasure hoards and detected anomalies. Thus you can determine size and depth of potential finds before digging. The deep penetration capability is just another advantage of our 3d ground scanner.

Improved Features:

  • Integrated color touchscreen with higher resolution
  • Improved sensor and coil technology
  • New, long-lasting and rechargeable batteries
  • More compact and robust design
  • Bluetooth headphones included

Returning Features:

  • Telescopic probe with search coil
  • LED-light for searching in dark environments
  • Full color display with touchscreen
  • Live Sound mode with VLF metal detector
  • 3D Scan mode with GST/EMSR scanner
  • Multilingual user interface
  • Graphical scan analysis with Visualizer 3D software/li>

Specs:

  • Warranty : 2 Year Limited
  • Total Weight : 3.3 lbs (1.5 kg)
  • Dimensions (H x W x D) : 540 - 810 x 150 x 280 mm
  • Frequency : 2.4 – 2.4835 GHz
  • Data Transmission Technology : Bluetooth
  • Maximum Range : approx. 10 m (32.8 ft)
  • Data Memory (internal) : 4 GB

Ground Scanning and Metal Detecting

The 3d ground scanner OKM Evolution NTX supports two operating modes to research the underground soils for hidden objects and structures. The length of the detector can be adjusted individually according to your own body height. Thus you can make this metal detector your metal detector.

Starting at the main menu you simply select one of the operating modes:

  • Live Sound :
    This operating mode activates the VLF metal detector to find shallow metal objects like coins, rings and other jewelry. Next to an acoustical output you can also see a simple graphical indication of the signals.
    Live Sound
  • 3D Scan :
    This operating mode is used to conduct graphical 3d ground scans. All scan data is stored into the device's memory. Those information can be transferred to OKM's Visualizer 3D software to generate graphical 3d images of underground objects and structures.
    3D Scan

Additional Specifications:

  • Control unit :
    • Dimensions (H x W x D) : 540 - 810 x 150 x 280 mm
    • Weight : about 1.5 kg
    • Input voltage (max.) : 19 V DC, 3.16 A, 60 W
    • Processor / Main CPU : Cortex M3, 32 MHz
    • Processor / Slave CPU : Cortex M0, 24 MHz
    • Display : 3.5" Resistive touch, 480 x 320 Pixel
    • Display CPU : Cortex M3, 32 MHz, 128 KB RAM
    • Data memory : 4 GB
    • Sample rate : 1024 values / second
    • Measurement resolution : 16 bit
    • Operating temperature : -10 – 60 °C
    • Storage temperature : -20 – 70 °C
    • Audio : Internal speaker / Bluetooth
    • Air humidity : 5 % – 75 %
    • Waterproof : No
    • Technology : GST, EMSR
    • Sensor / Coil technology : SCMI-15-D / VLF
  • Data transmission (Bluetooth) :
    • Technology : Bluetooth
    • Frequency : 2.4 – 2.4835 GHz
    • Maximum Transfer Rate : 1 Mbps
    • Receiving Sensitivity : -85 dBm
    • Maximum Range : approx. 10 m
  • Computer, minimum requirements :
    • CD-ROM drive : minimum 4x
    • Interface (Data transmission) : USB
    • Free disk space : minimum 50 MB
    • Working memory (RAM) : minimum 256 MB
    • Graphic card : minimum 128 MB, OpenGL-compatible
    • Processor : minimum 1.2 GHz
    • Operating system : Windows Vista, Windows 7, Windows 8, Windows 10
