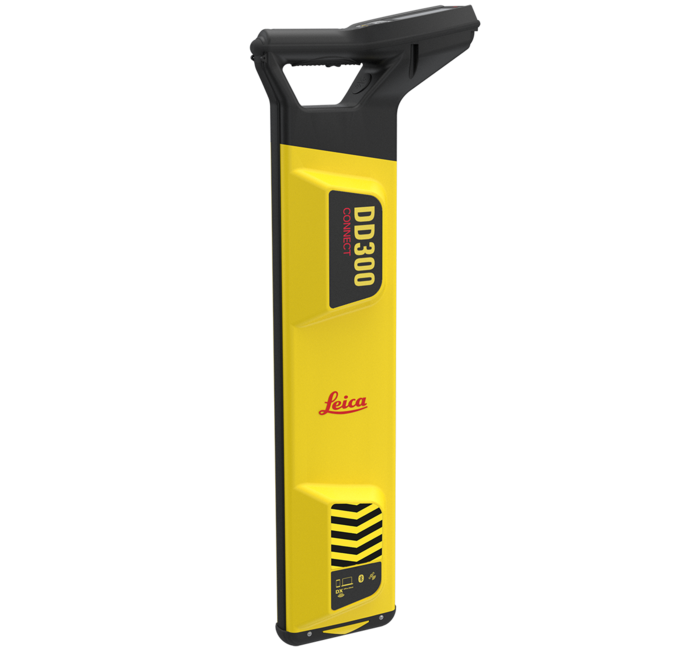

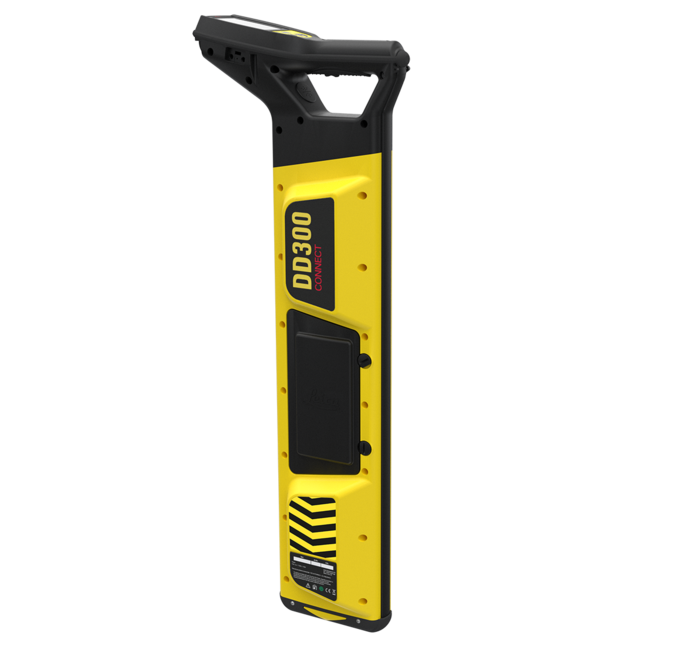

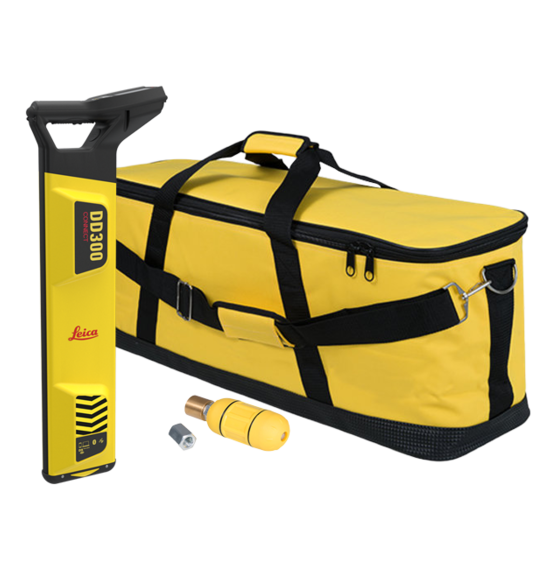

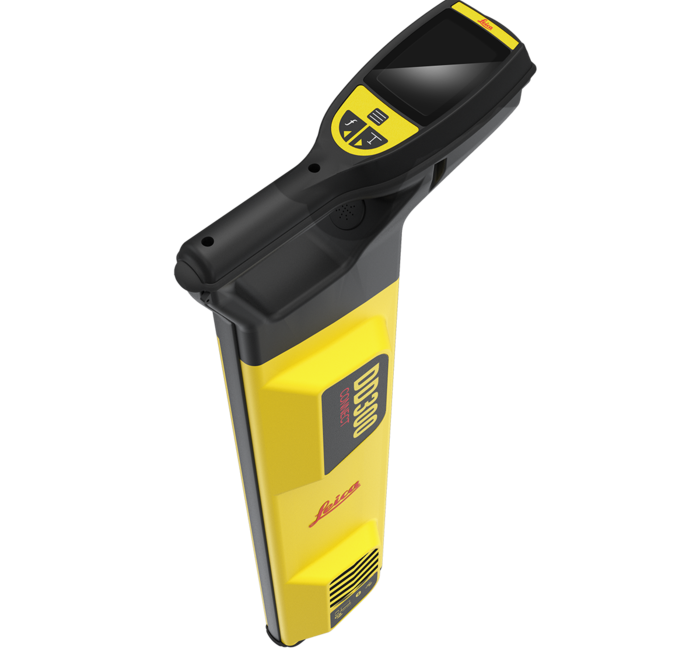

Introducing the DD300 Connect
The DD300 Connect has everything basic and expert users need is one device. LCD color screen with Video Tutorials offers a simple step-by-step survey. The DD300 Connect offers a wide range of standard frequencies. It boasts an 83kHz high-frequency bridging the gap from 33kHz to 131kHz and is equipped with an innovative digital trim, providing accurate detection even in multi-target environments.
Ease of Use
This Smart & Easy device offers everything surveyors need in a single system, enabling all users to make real-time, accurate, and reliable detection of underground infrastructures, to improve safety by mitigating risks associated with anyone who is working on construction sites.
Customization
Thanks to its features Leica DD300 and Leica DA300 transmitter adapt to all different needs of surveyors, providing unprecedented customization in the avoidance market.
Reliability
The new Leica DD300 boasts an innovative digital trim, to offer accurate detection even in multi-target environments. It supports a wide range of transmission frequencies
Besides the standard range of frequencies. Leica DD300 is the only cable locator in the avoidance market that supports the 83kHz frequency, to help users in the detection of underground structures even in more complex scenarios.
The DD300 is designed for improved serviceability. It provides the self-calibration functionality, which guarantees that the locator can be easily and autonomously fully tested and re-calibrated.
Digital Trim
The new Digital Trim assists the operator in pinpointing the desired target even in complex scenarios
| MODE | DD300 CONNECT |
| Power | 50 / 60 Hz mains electrical and harmonics |
| Radio | 15kHz to 60kHz |
| Auto | Power, Radio, 33kHz |
| Transmitter Modes |
131.072 (131) kHz | 83.078 (83) kHz | 32.768 (33) kHz | 8.192 (8) kHz | 512 Hz | 640 Hz |
| Depth Range |
Line 0.1m to 7m | 4 inches to 23 feet | Sonde 0.1 to 10m | Sonde 4 inches to 32.8 feet |
| Depth Accuracy* | 5% |
| Bluetooth |
Class 2 BLE dual mode module - Bluetooth Classic 2.1 | Bluetooth 4.0 (LE) |
| GPS** |
Chipset (1): u-blox®GPS Receiver Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1 Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical |
| Memory Capacity | 8 GB internal memory |
| Environmental Standard | IP65 |
| Operating Temperature |
-20 °C to +50 °C | -4 °F to +122°F |
| Battery | 4 X LR20 Alkaline Battery - Li-Ion as Optional |
| Battery operating time *** | 10 h |
| Dimensions (HxWxD) |
765x290x93mm | 30.12 x11.42x3.66 inches |
| Weight with batteries |
2.86Kg | 6.3 lbs |
