JW Fishers Sea Otter 2 ROV

JW Fishers Sea Otter 2 ROV

The JW Fishers Sea Otter 2 ROV is a state-of-the-art mobile underwater camera system designed for versatility and efficiency in underwater exploration.

Mobile Underwater Video

The Sea Otter ROV is a completely mobile underwater camera system capable of moving in any direction. Perfect for pipeline work, river and ocean searches, and the inspection of hazardous sites. The ROV allows a diving operation to dramatically reduce deep water search time.

Remotely Locate, Inspect, and Video Tape

With the Sea Otter, your team can locate, inspect, and video tape a target without entering the water. The ROV has a sophisticated four motor propulsion system; two motors for forward and reverse, and two motors for vertical and lateral thrust. All motors are reversible and operate at variable speeds of up to 2 mph. Four meters on the control panel monitor thrust and direction for each motor.

Hi-Resolution Video

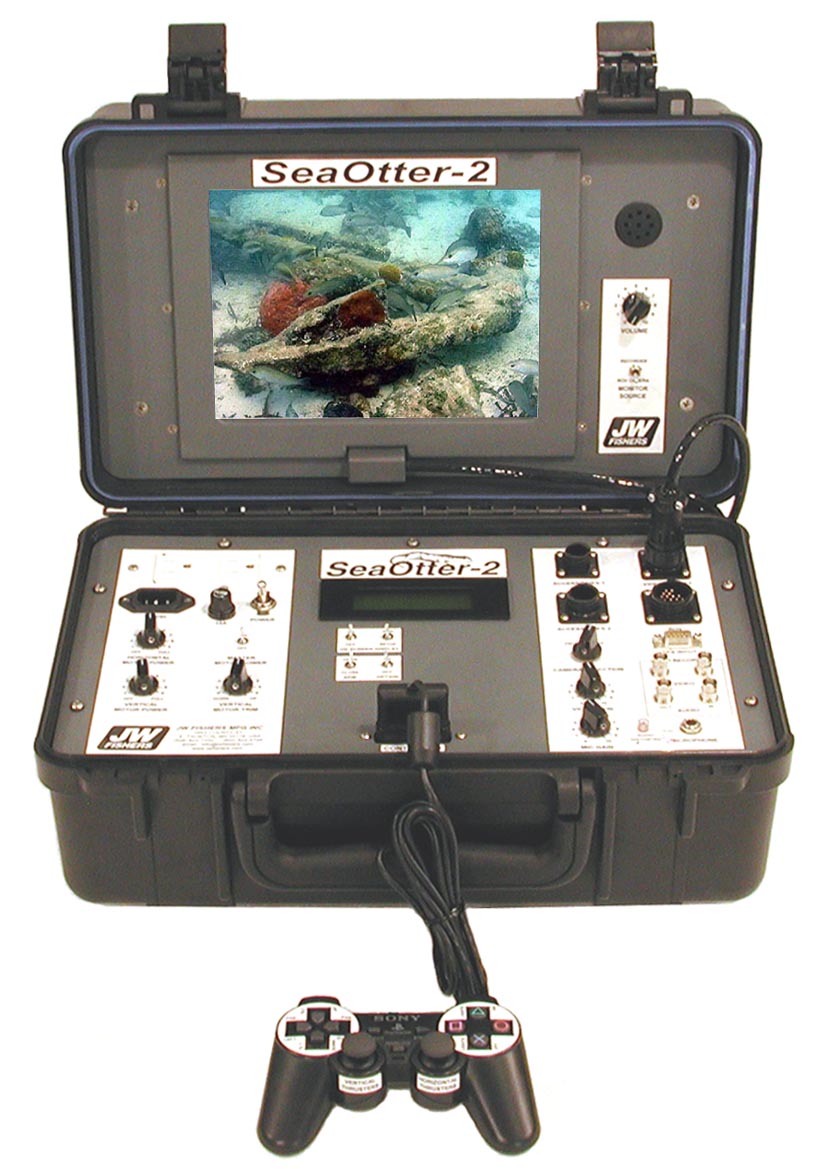

The Sea Otter sends its video picture to a topside 13-inch high-resolution color monitor. A VCR can be connected to the monitor to make a permanent record. The color camera has a 6mm wide-angle (50-degree) lens. The camera's 70-degree tilt allows a full 120-degree viewing angle. Illumination is provided by four, 100-watt remotely controlled tungsten halogen lamps.

Intuitive and User-Friendly Controls

The system is highly portable and very user-friendly. With the optional spare parts kit, the ROV is completely field maintainable. A carrying case is included. JW Fishers Sea Otter ROV system represents a major breakthrough in cost/performance for a commercial-grade ROV. This high-performance system competes with systems costing more than twice as much.

Product Features of the JW Fishers Sea Otter

• 500 Ft Depth Capability
• Two "Pan And Tilt" .3 Lux, 570L Color Cameras
• Built-In 10.4 In Ultra Bright Color Monitor
• 250 Ft Cable
• 120v AC

Standard Factory Items Included

• Warranty Certificate
• Detailed Instruction Manual

Basic display for time/date/GPS. PAL Camera with high resolution. The JW Fishers Sea Otter is a completely mobile underwater camera system. This unit has a sophisticated 4 motor propulsion system with two motors for forward, reverse, and two motors for vertical and lateral thrust. Meters on the console monitor thrust for each motor.

Manual details: Download Manual
