Fisher XLT-30-D Liquid Leak Detector

Fisher’s XLT-30-D includes the MULI-SENSOR and Big Foot Sensor for a combination that sets a new standard for leak detection. The XLT-30-D features advanced electronic amplification and filtering, a tactile keypad, an easy to read digital display and a notch feature which allows independent suppression of outside interfering noise. You can detect leaks easily with the Water Leak Detector. This model can detect leaks at hydrants, meter pits, valves, and underground. This unit detects and pinpoints liquid leaks in pipes. A notch filter system reduces external noise. It is designed for ultra-low amplifier noise for amplifying leak responses. It has a peak hold function that appears on the LCD bar graph for comparison of sound levels. It automatically limits the system to enhance weak noise sources for easy listening in the field through the included crystal clear audio headphones for easy listening in the field. In addition to a tactile keypad, this unit has a digital display which is backlit for use in low light conditions. It ships in a heavy duty carrying case for protection in the field and during transport.

It has increased response for poor sound conductors such as pvc pipe or non metallic pipe. Sensors are shielded from outside noises to reduce interference with your searches. A battery test and monitoring system is built into the device. This model has a wide variety of optional compatible ultra sensitive sound microphones. You can select from the following options based on the package you select: Hydrophonic Probe, Sound Rods, Multi Sensor Microphone and the Big Foot Microphone, Multi-Sensor Microphone, Little Foot Microphone.

Fisher Big Foot Sensor

Also known as the Ground Microphone, this sensor is to be used on hard surfaces such as concrete, asphalt and tile. A flexible rubber shield helps prevent outside sounds from interfering with the sounds from the buried pipe. Just press and hold the red button near the handle to mute the audio from the probe and suppress loud sounds when the probe is moved.

Fisher Multi-Sensor

Fisher’s MULTI-SENSOR has superior leak detection capabilities. In an extremely compact design, Fisher has achieved higher performance, improved audio clarity, improved sensor electronics, and better sensitivity to leaks with less background noise – all with heavy duty characteristics of the trusted Big Foot. The MULTI-SENSOR is used for both the ground microphone and direct contact applications – the one sensor that does it all.

Key Features of the Fisher XLT-30-D Liquid Leak Detector:

• The Fisher XLT-30 detects and pinpoint liquid leaks in pipes
• Notch filter for external noise suppression
• Ultra low amplifier noise
• Peak hold feature on LCD bar graph for sound comparison
• Automatic limit system to enhance weak noise sources
• Tactile keypad & digital display, backlit for low light usage
• Increased response in poor sound conductors
• Shielded sensor for reduced response from outside noises
• Improved head set for clearer sound response
• Automatic battery test and monitoring
• Operates on two 9 volt batteries

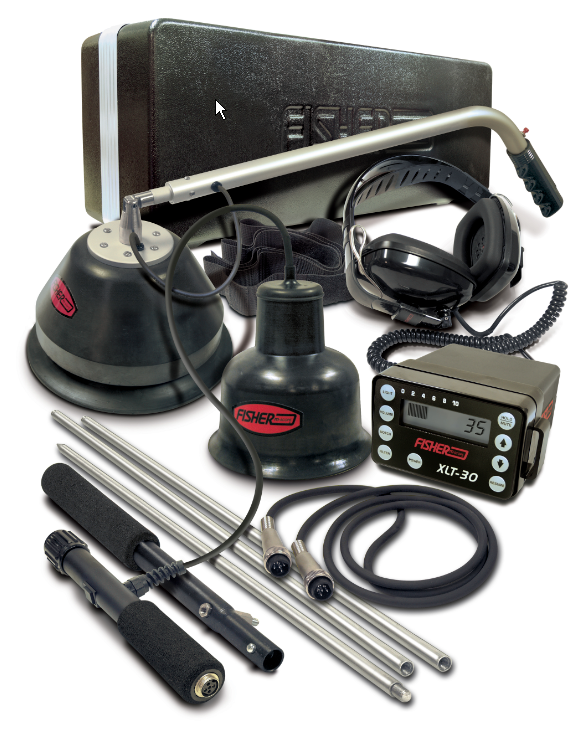

Fisher XLT-30-D comes complete with the following factory packed items:

• Multi-Sensor
• Big Foot
• Heavy-Duty Carrying Case
• Probe Cable Assembly
• Operation Manual
• Control Unit
• Head Phones
• Carry Strap
• Housing Bracket
• Sounds Rods
• 2 Year warranty from Fisher Labs Industrial

Liquid Leak Detector Specifications:

• Operating Frequency: 60 Hz – 6 kHz, Gain = 95 db | 20 Hz – 60 Hz, Gain > 90 dB
• Filter Types and Frequency Range: All Pass: 60 Hz to 6 kHz
• Low Pass: Adjustable cut-off frequency from 150 Hz to 2.4 kHz
• High Pass: Adjustable pass band frequency from 150 Hz to 2.4 kHz
• Band Pass: Adjustable center frequency from 150 Hz to 2.4 kHz
• Notch Filter: Adjustable center frequency rejection from 150 Hz to 2.4 kHz
• Can be used simultaneously with any filter option

Output Indications:

• Audio: High performance headphones (64 ohms)
• Visual: LCD bar graph and 2-digit numeric display
• Grade of Protection: Splash Proof
• Battery Test: Automatic
• Battery Quantity/Type: 2 / 9V Alkaline
• Battery Life: 50 Hours (approximately)
