Fisher XLT-30 B Leak Detector With Multi Sensor

Fisher XLT-30 B Leak Detector With Multi Sensor

Fisher's new Multi-Sensor offers superior leak detection capabilities. With an extremely compact design, it achieves higher performance, improved audio clarity, enhanced sensor electronics, and better sensitivity to leaks with reduced background noise. The Fisher multi-sensor is versatile, used for both ground microphone and direct contact applications.

Advanced Features

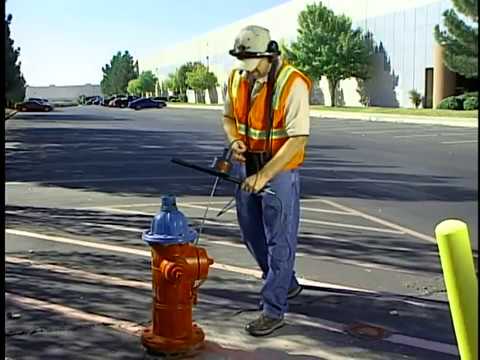

The XLT-30-B features advanced electronic amplification and filtering, a tactile keypad, an easy-to-read digital display, and a notch feature for suppressing external noise. It can detect leaks at hydrants, meter pits, valves, and underground, pinpointing liquid leaks in pipes. The notch filter system reduces external noise, and the ultra-low amplifier noise enhances leak responses. The peak hold function on the LCD bar graph allows sound level comparison. It automatically limits the system to enhance weak noise sources, with crystal clear audio headphones included for field use. The digital display is backlit for low-light conditions, and the unit ships in a heavy-duty carrying case for protection.

Enhanced Detection Capabilities

It has increased response for poor sound conductors like PVC or non-metallic pipes. Sensors are shielded from outside noises to reduce interference. A battery test and monitoring system is built in. This model offers a variety of optional ultra-sensitive sound microphones, including the Hydrophonic Probe, Sound Rods, Multi Sensor Microphone, and the Big Foot Microphone.

Key Features

• Detects and pinpoints liquid leaks in pipes
• Notch filter for external noise suppression
• Ultra-low amplifier noise
• Peak hold feature on LCD bar graph for sound comparison
• Automatic limit system to enhance weak noise sources
• Tactile keypad & digital display, backlit for low-light usage
• Increased response in poor sound conductors
• Shielded sensor for reduced response from outside noises
• Improved headset for clearer sound response
• Automatic battery test and monitoring
• Operates on two 9-volt batteries

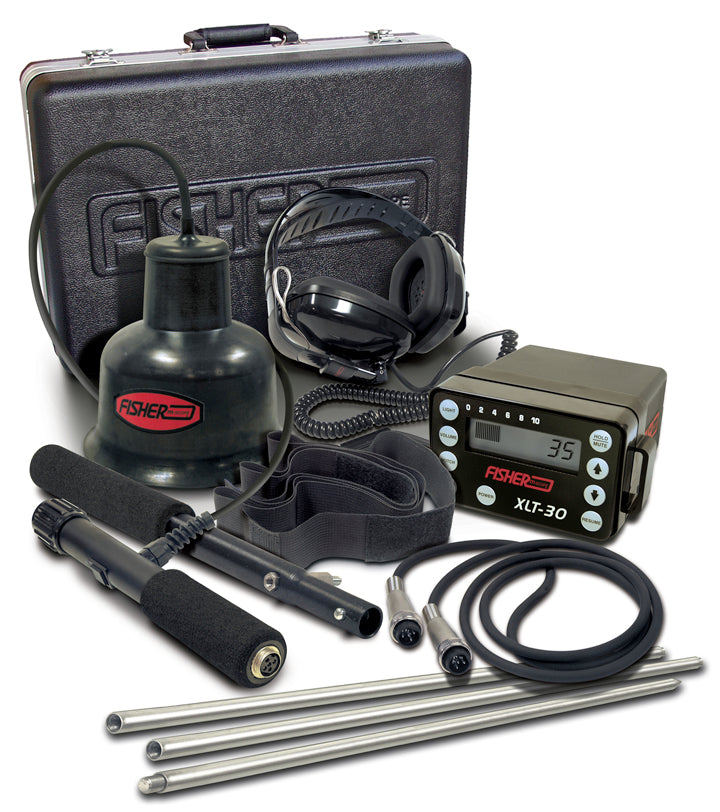

Package Contents

• Heavy-Duty Carrying Case
• Probe Cable Assembly
• Operation Manual
• Control Unit
• Headphones
• Multi-Sensor
• Carry Strap
• Housing Bracket
• Sound Rods
• Weight: 10 lbs. (4.5 kg)

Specifications

• Operating Frequency: 60 Hz - 6 kHz, Gain = 95 dB | 20 Hz - 60 Hz, Gain > 90 dB
• Filter Types and Frequency Range: All Pass: 60 Hz to 6 kHz
• Low Pass: Adjustable cut-off frequency from 150 Hz to 2.4 kHz
• High Pass: Adjustable pass band frequency from 150 Hz to 2.4 kHz
• Band Pass: Adjustable center frequency from 150 Hz to 2.4 kHz
• Notch Filter: Adjustable center frequency rejection from 150 Hz to 2.4 kHz
• Can be used simultaneously with any filter option

Output Indications

• Audio: High performance headphones (64 ohms)
• Visual: LCD bar graph and 2-digit numeric display
• Grade of Protection: Splash Proof
• Battery Test: Automatic
• Battery Quantity/Type: 2 / 9V Alkaline
• Battery Life: 50 Hours (approximately)

The Fisher XLT-30 is a liquid leak detector that detects the audio sound of leaks in pipes. The XLT-30 B model features the Fisher Multi Sensor and works with or without contact of the pipe. Be sure to read our Guide entitled Fisher XLT 30 Liquid Leak Detectors Comparison

Manual details: Fisher XLT-30 Manual
