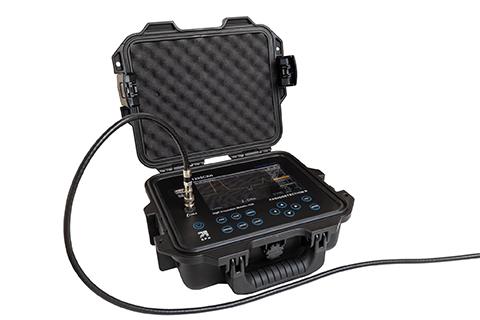

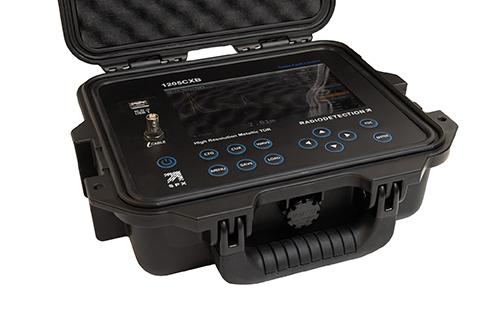

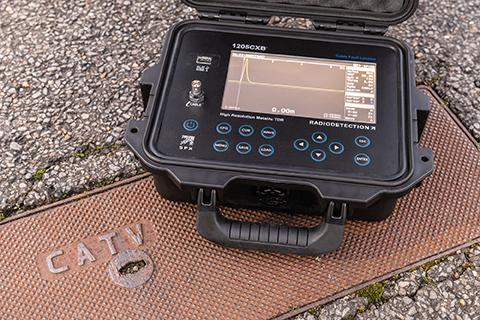

Schonstedt 1205CXB Cable Analyzer & Fault Finder



Questions Answered

1205CXB Cable analyzer/fault finder

TDR Time Domain Reflectometer / Network Analysis / Cable Test

Ensuring your customers stay connected to your network is your number one priority. The 1205CXB TDR is the perfect tool to pinpoint copper cable faults - quickly, easily and accurately.

Radiodetection has created the 1205CXB Metallic Cable Analyzer TDR to make finding cable faults quick and easy.

The ultra-clean, low noise signal in tandem with the large color display combine with having all the TDR controls on-screen, at your fingertips, to provide one of the easiest to use instruments in the industry.


Automatic scanning. Let the 1205CXB find the faults for you


Automatic dBRL calculation

Eliminates the need to calculate impedance changes in a cable visually and/or manually, saving you time finding the most serious faults

Multipurpose USB Port

Advanced connectivity USB port, making it easy to view and export your data, and to charge the battery

WaveView™ PC software

Examine and interpret on-site waveforms in unprecedented detail
Generate reports for your client and office.
Pan and zoom to scrutinize every detail of the waveform to pinpoint and diagnose cable faults
Add notes, assess Return Loss (dBRL) figures and even correct mistakes such as VOP errors made on site

Waveforms storage options and flexibility

Choose whether to save waveforms to USB memory stick or to on-board memory
On-board storage location can be short-term, volatile RAM, or permanent Flash memory
Save your waveforms to USB stick as bmp image files or as btr files, that are compatible with Radiodetection’s easily configurable WaveView™ PC software, or both, to provide multiple options for your reports, work orders etc
